DETAILS

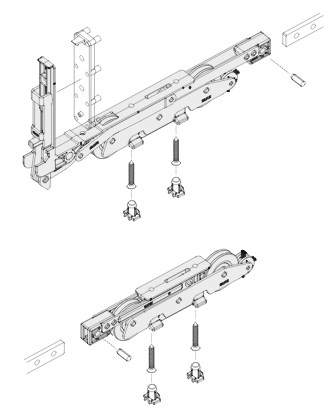

LS400 bogies suitable for profiles with 22-millimeter groove.
• Fixing to the profile using Pozidrive head screws.
• 2 mm shim available to compensate for sash height.
• Bogies can be purchased individually.

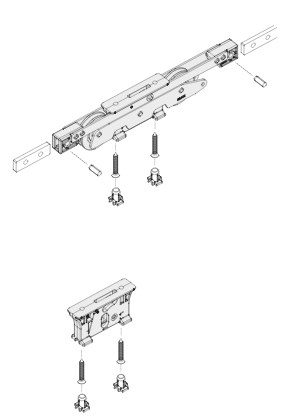

Supplementary bogie (ref. 233003)
• For configurations from 300 to 400 kg per sash, 2 supplementary bogies per sash are required.
• Supplied with connection plates and screw kit.

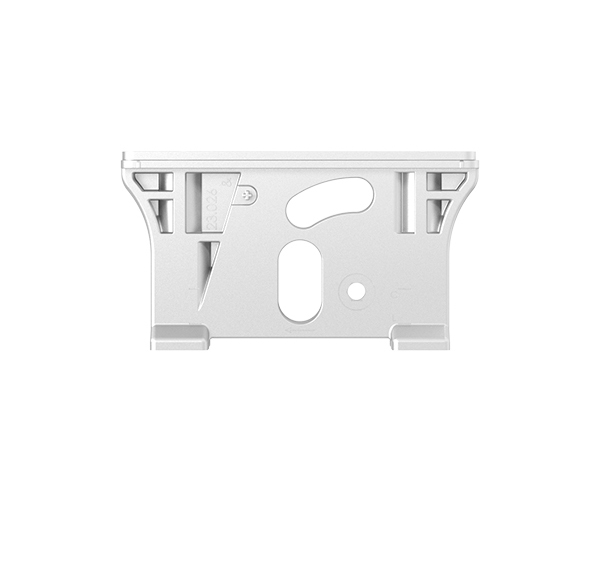

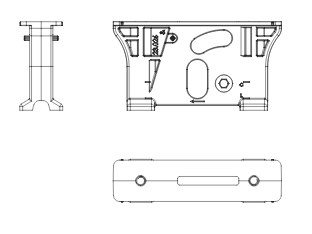

Fixed sash bogie (ref. 233004)
• Allows the fixed sash to be aligned with the movable sash.
• For sashes under 300 kg: 2 units required.
• For sashes over 300 kg: 4 units required.
