DETAILS

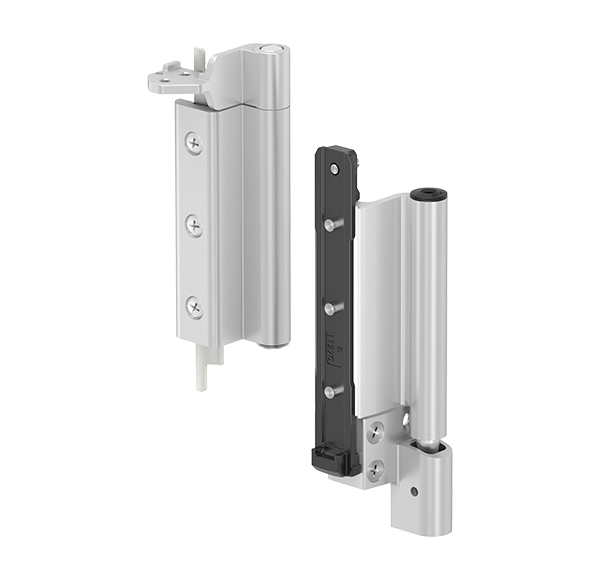

Tilt & turn hinges specially designed to withstand high loads in hinged systems.

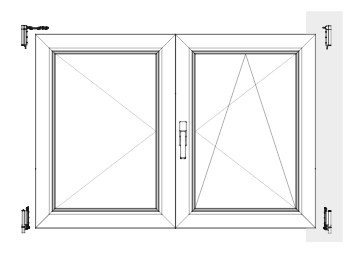

• Valid for right-hand active sash (ref. G1114DR for passive sash).
• Maximum load per sash: 200 kg.
• Hinge pitch: 4.5 millimetres.

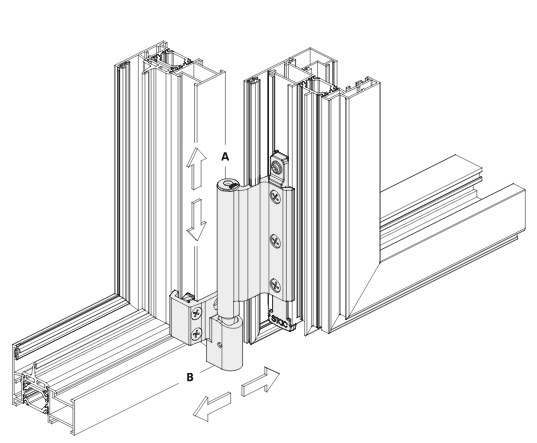

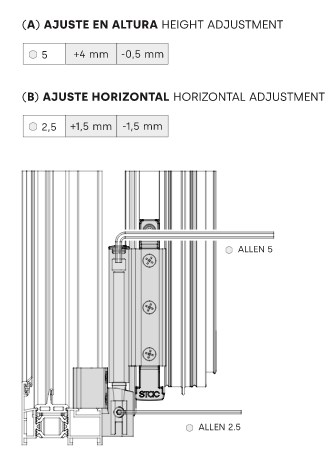

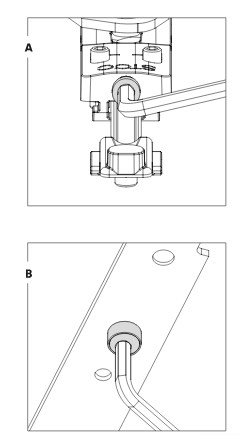

• Lower hinge adjustments: -0.5, 4 millimetres in height and ± 1.5 millimetres horizontally.
• Specific tilt & turn friction stays for traditional manoeuvre (ref. G110301) or tilt-before-turn manoeuvre (ref. G110304) not included in the kits.
