GTI  - Glued Thermal Insulation

Because it is considered a high-performance system from TECHNAL

GALENE

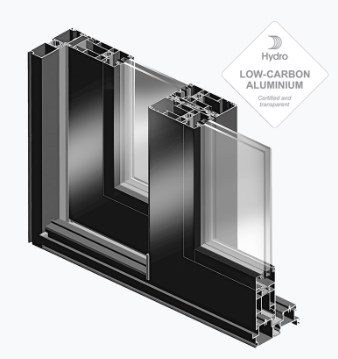

LIFT & SLIDE SYSTEM

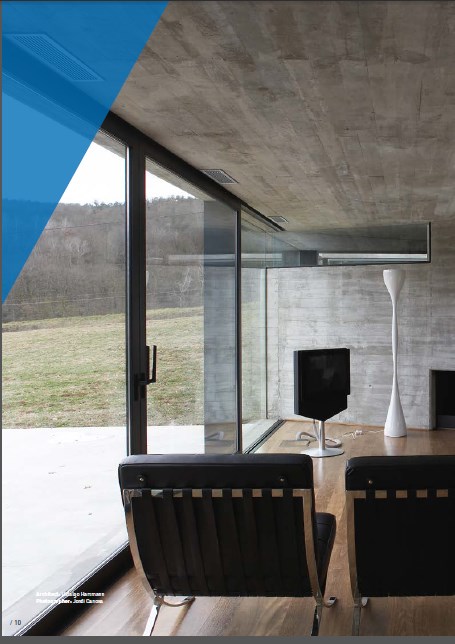

Panoramic sliding window

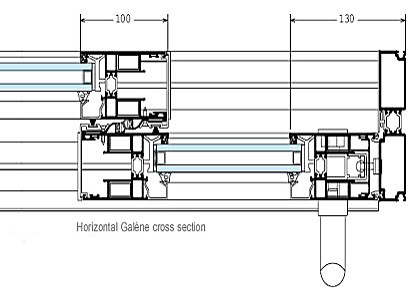

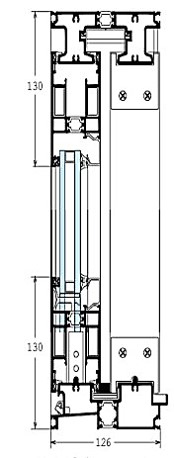

Lift and slide system, 126 mm module
2, 3 or 4 points locking systems activated by a special handle (single or double)
Possibility of glazing with an integrated blind for solar protection

The aluminum system is designed by the French company TECHNAL and is considered one of the most important sections that have been recently issued - produced by the Madar Aluminum Factory - Daboul Industrial Group

Designed to provide excellent thermal insulation along with outstanding weather resistance and sound insulation performance

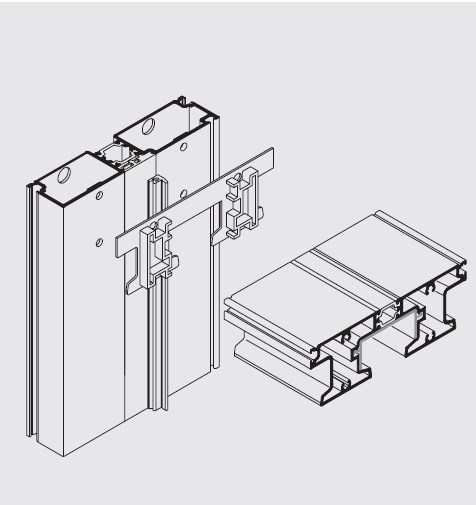

An additional central insulating layer binds the profiles together, providing superior thermal insulation

The relatively large dimensions of the sliding doors allow more light and light to enter the interior and reduce the obstruction of the view or external views

As with all Technal products, only the highest quality materials and components are used for the

GX - GXi - FX - FXi - GT - GTi - MX

System for low maintenance and performance over time

 Aluminium profiles are extruded from alloys 6005 T6, 6063 T6 or 6060 T5 to BS EN 12020, BS EN 573-3, BS EN 515 and BS EN 775-1 to 9

Accessories are cast from Zamak 5 or A-S9G03 to BS EN 12844

Glazing gaskets are EPDM SH 60-75

 Polyamide thermal breaks are extruded from PA6-6 (0.25 FV) Screws and components are either stainless steel, cadmium-plated steel or other corrosion

:BRODUCT BENEFITS

LARGE SIZES

BIG DIMENSIONS UP TO W 5 M X H 2.5 M WITH 2-LEAF

Max weight per leaf up to: 300 kg

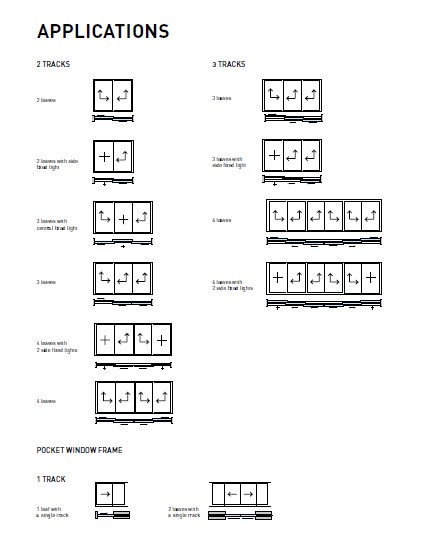

APPLICATIONS

Sliding patio door 2 and 4-leaf on 2 tracks

Sliding patio door 3 and 6-leaf on 3 tracks

HIGH PERFORMANCE

Air permeability: Class 4

Water tightness: Class 7A

Wind pressure resistance: Class C3

Sliding patio door 2-leaf on 2 tracks (W 3 m x H 2.20 m)





PHOTOS

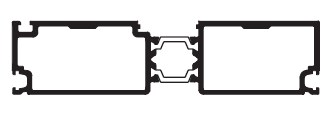

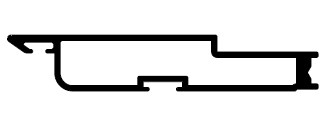

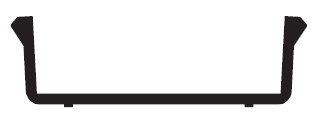

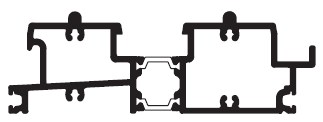

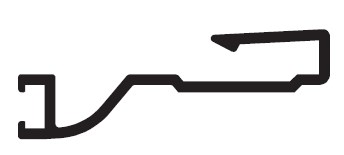

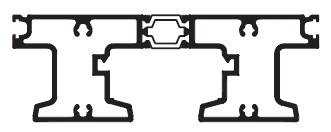

ALUMINUM PROFILE
